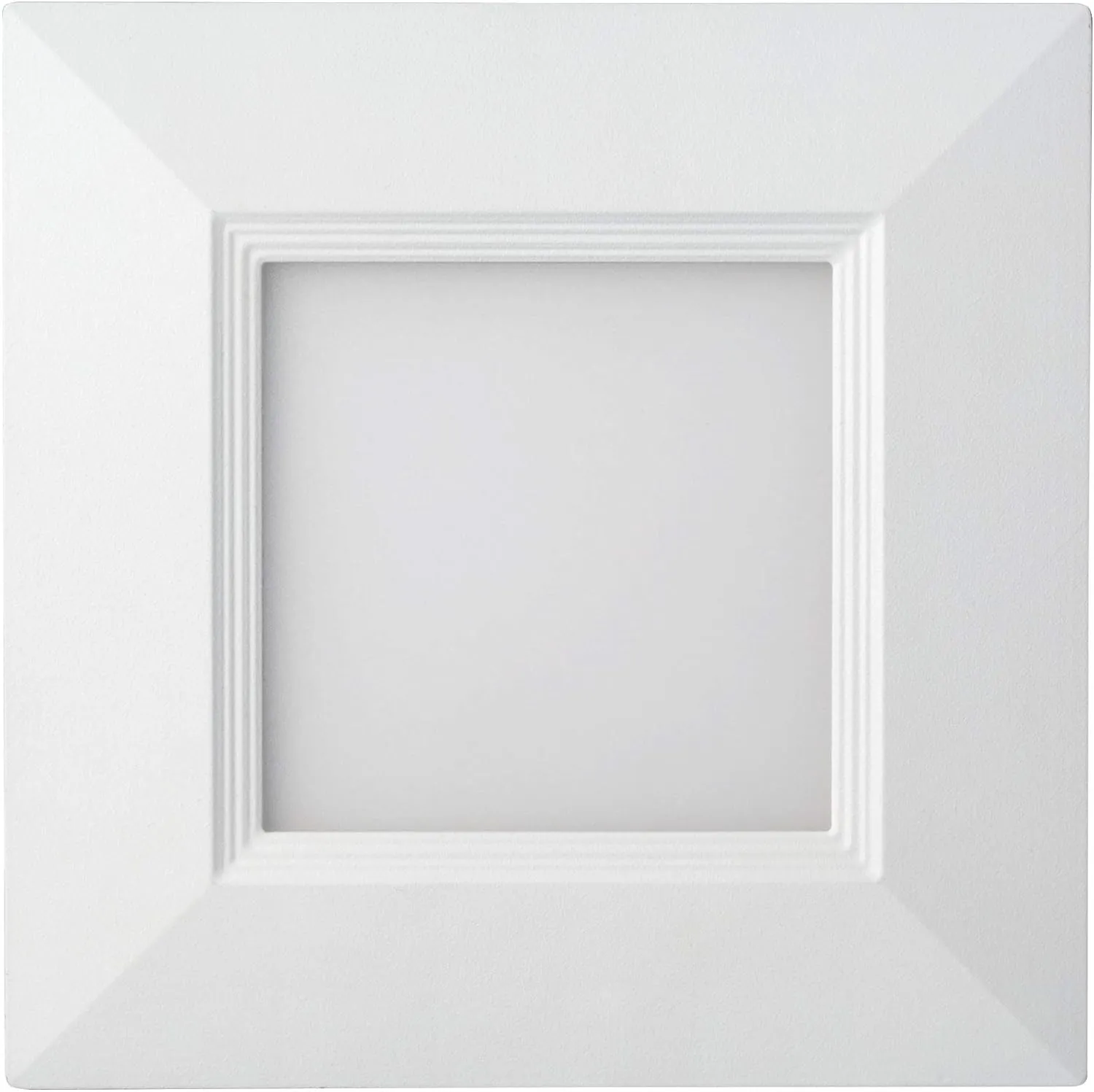

Lithonia Lighting WF6 SQ B LED 30K MW M6 Ultra-Thin Square LED Recessed Ceiling Light, 3000K | Bright White, Matte White
$20.00
$25.00
Save: $
Color:
White
Black
Size:
2700K
3000K
3000K 4000K 5000K
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
Easy and safe installation- innovative, slim design allows for easy retrofit, remodel or new construction installation from below the Ceiling. Only need 2 inch clearance for install
Highly rated for multiple locations -CSA, ic, airtight and wet location listings make LED wafer ideal for indoor and outdoor residential, hospitality, commercial and multifamily applications
Extremely bright dimmable leds use 13.4 watts to provide 880 lumens with an 80 CRI. Dims down to 10% and compatible with select Lutron, levitron, synergy and sensor switch dimmers
Ultra thin LED design only requires a 5.9 inch round Ceiling hole and 2 inches of Ceiling space are needed to fit LED wafer recessed light and UL recognized driver
Saves money and time changing bulbs- energy Star rating provides high light output with minimal power usage and will last 36, 000 hours or 16 years when on everyday for 6 hours/day

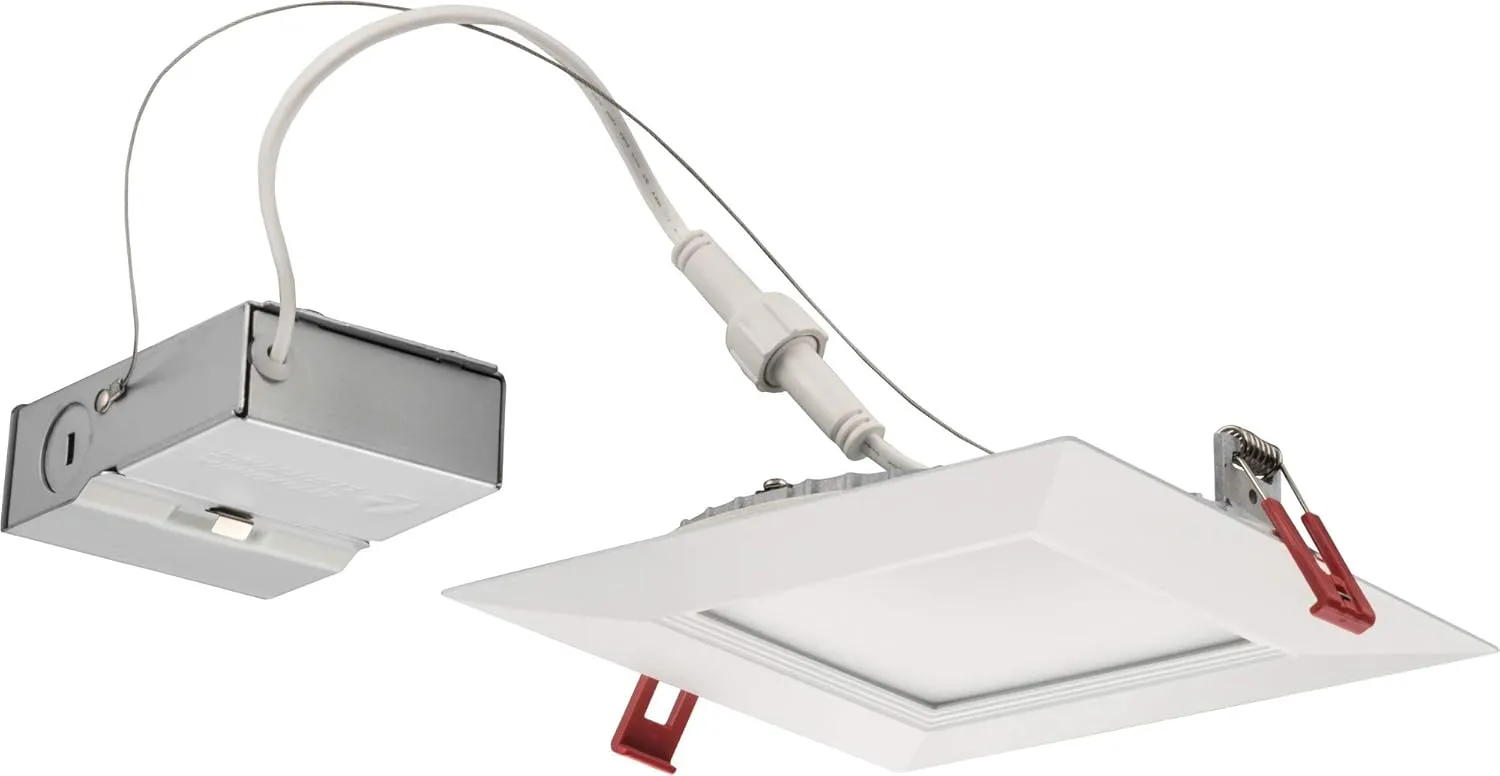

The Lithonia Lighting Wafer-Thin LED recessed downlight with remote driver box combines high quality light output and efficiency while eliminating the pot light housing for competitive affordability. This innovative wafer slim Type IC design allows easy installation for new construction or remodel from below the ceiling without the requirement of a pot light housing.
Technical Specifications: Power: 13.4W Input Voltage: 120V (Connects directly to power supply via provided UL recognized driver) Luminous Flux: 880LM Emitting Color: 3000K(Bright White) Dimmable: Yes Light Source: LED CRI: 80 Surface Size: 6.7 inches Back Hole Size: 5.9 inches Dimension: 6.7 x 6.7 x 1.1 inches Light direction: Downlight Average life: 36,000 hours Warranty: 5 years – Limited Electrical: Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pry-out. Meets Highest Industry Standards: CSA certified in the USA and Canada, Energy Star Rated, IC Rated, Wet Listed and Air Tight. More electrical information and complete list of compatible dimmers are located on spec sheet.
How many LED lights do I need for the room? Wafer 6 inch: One unit is needed for about every 2.5sq feet in an 8 ft ceiling room. 3 units for a room ranging from 6 sq ft – 9 sq ft. 6 units for a room ranging from 12 sq ft – 15 sq ft. 9 units for a room ranging from 15 sq ft – 19 sq ft.

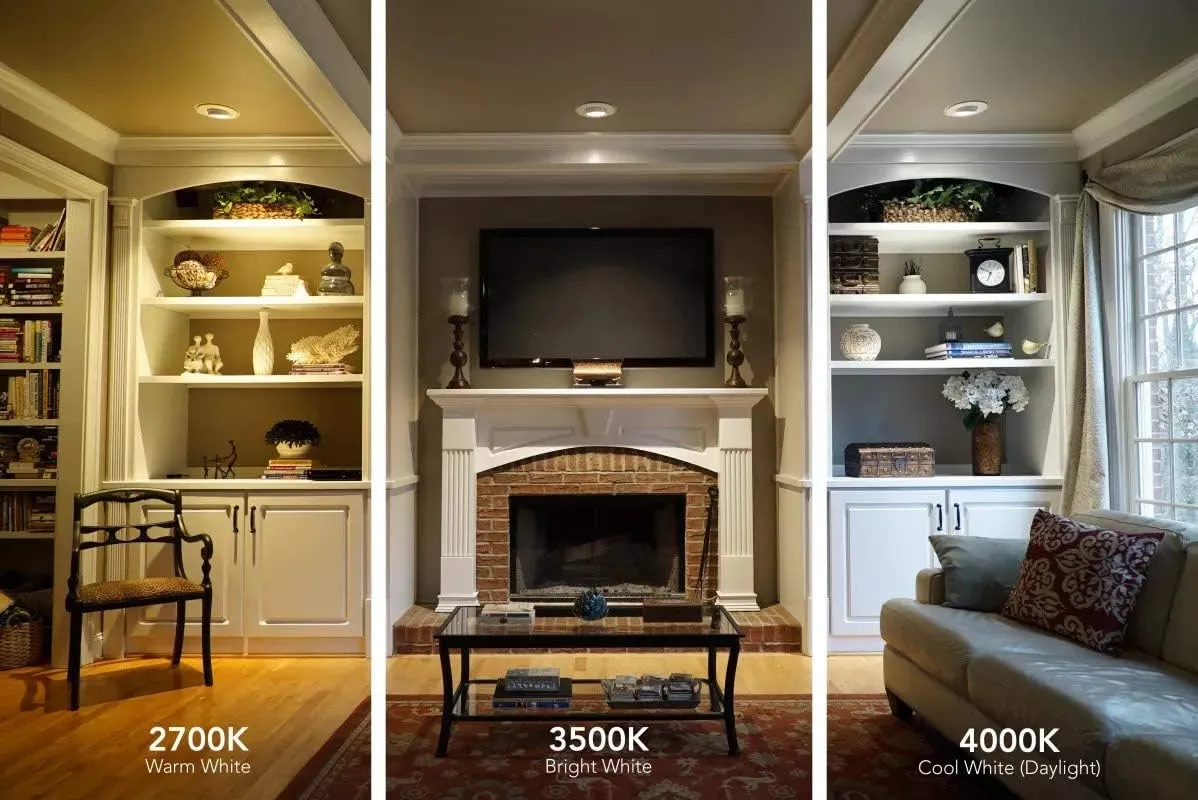

Which light colors work for me? 2700K: Used in family homes, bedrooms and other areas where warmer, more orange/yellow light is desired3000K: Used in family homes, hotels, coffee shops and other warm and sweet environments. 4000K: Used in homes with a need of a soft white lighting atmosphere. 5000K: Used in offices, working areas, shopping malls and other commercial areas that needs super bright lighting.

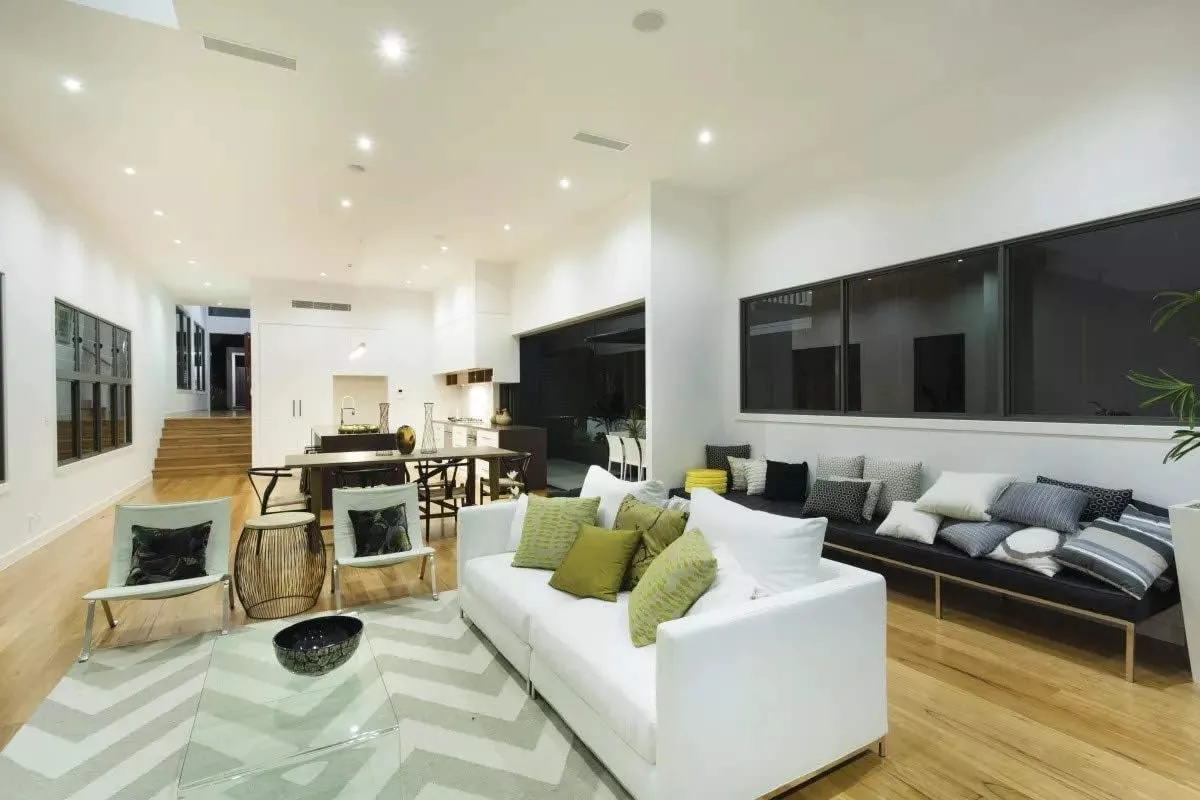

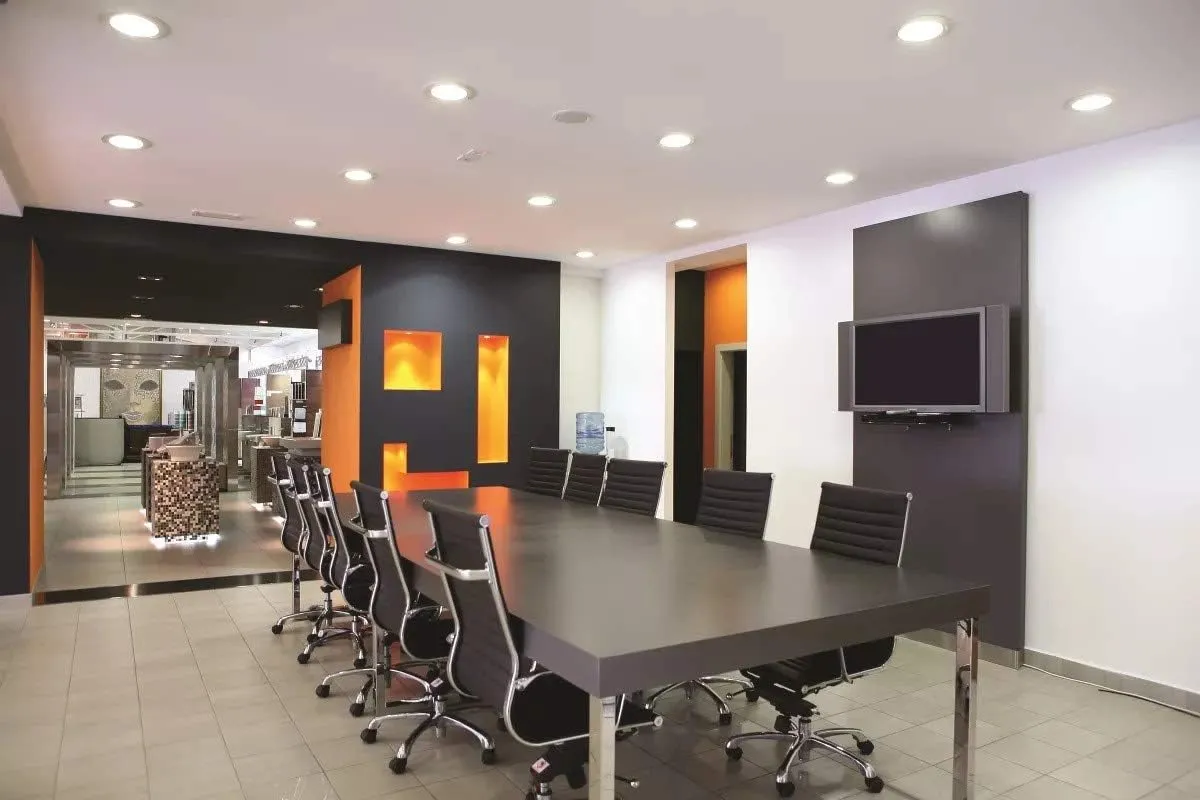

Application Areas: Ideal for new constructions, remodels or retrofit installations. Closets, attics, hallways, bathrooms, kitchens, basements, soffits, entry ways, porches, garages. Stairwells, corridors, nursing/retirement homes, condos, elevators, apartments, and any other small areas.

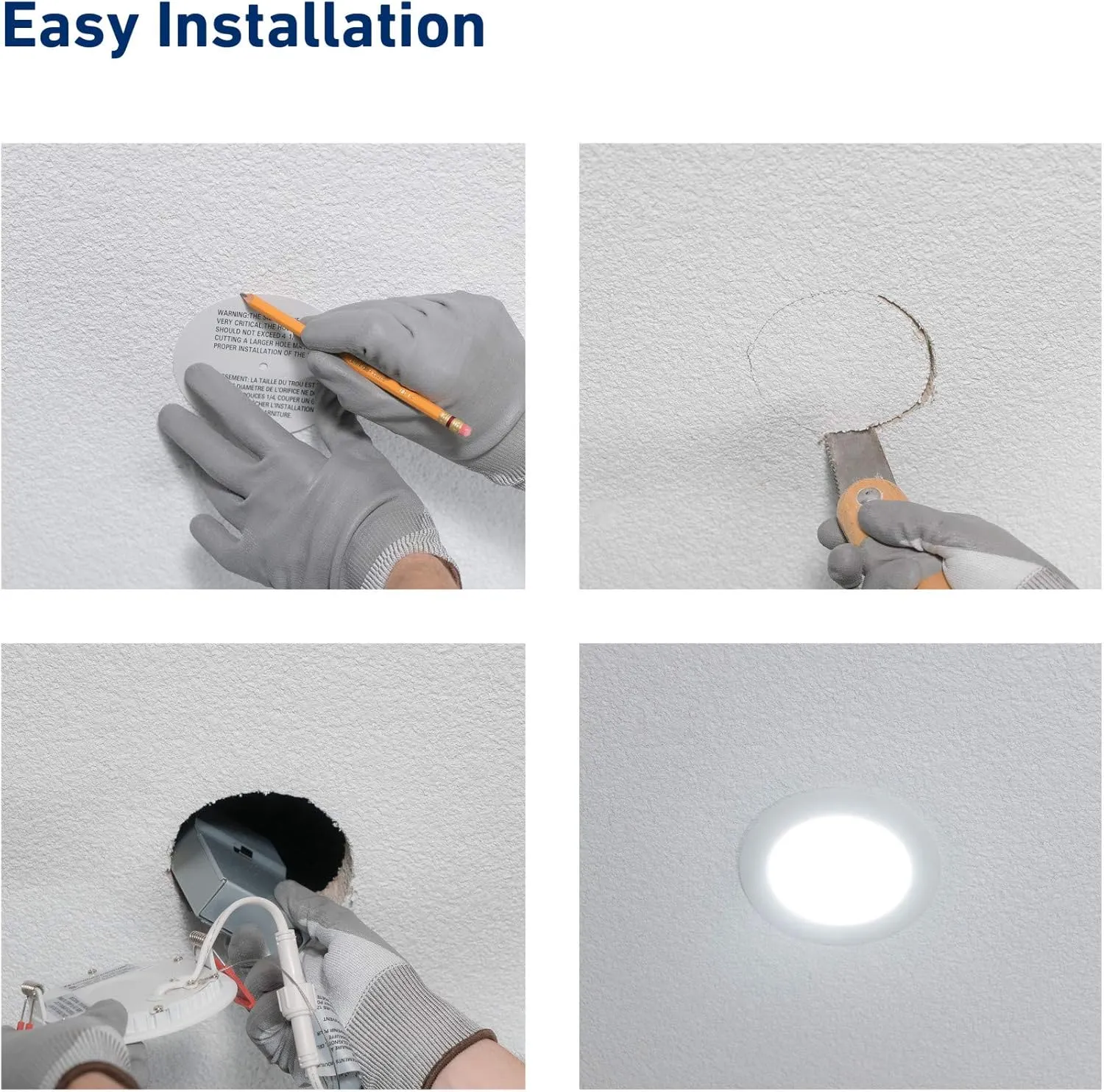

Installation Guide: 1. Double check and measure the ceiling hole. 2. Open the cover of the remote driver box. Push and remove one of the knockouts on the side plate. 3. Connect the remote driver box to the light fixture and tighten nut connector. 4. Place remote driver box through the cut-out hole. 5. Pull the spring clip on the fixture up and through the ceiling hole. Place module in the hole. 6. Turn the power on Installation guide for kit included in the package.
