- Set of 2 Hettich automatic hinges with clip technology and integrated damping from Sotech
- Hinge pot for screwing on with automatic closing mechanism; quality rating according to EN 15570, level 3
- Strong and robust steel hinges, stop type: corner stop (fully available)
- For door thickness 15 - 24 mm, pot diameter: 35 mm, pot depth 12.8 mm, hole spacing mounting plate 32 mm
- Cushion adjustment: 2 mm / -2 mm, depth adjustment: 3 mm / -2 mm, height adjustment via slotted holes of the mounting plate
Product details:
- Order number: 9071205
-Item type: Sensys 8645i, base 12.5 mm, TH 52, screw-on hinges with integrated damping
-Material: nickel-plated steel
- Pot design: TH 52
- Opening angle (°): 110 degrees
- Pot diameter: 35 mm
- Pot depth: 12.8 mm
- Distance between the two screw holes (next to the pot): 52 mm
- The distance between two holes in the mounting plate is approx. 32 mm.
- The distance from the door edge to the pot hole is approx. 3-5 mm.
- Mounting type: for screwing on.
- Type of stop: full / corner stop
- Hinge offset: 0 mm
- Base: 12.5 mm
- Door thickness (min. /max.) : 15 - 24 mm
- Integrated support adjustment: 2 mm / -2 mm.
- Integrated depth adjustment: 3 mm / -2 mm.
- Hinged pot / arm: nickel-plated steel
- Cover cap for hinge arm: no
- Quick installation door: no
- Quick assembly body: yes
Box contents:

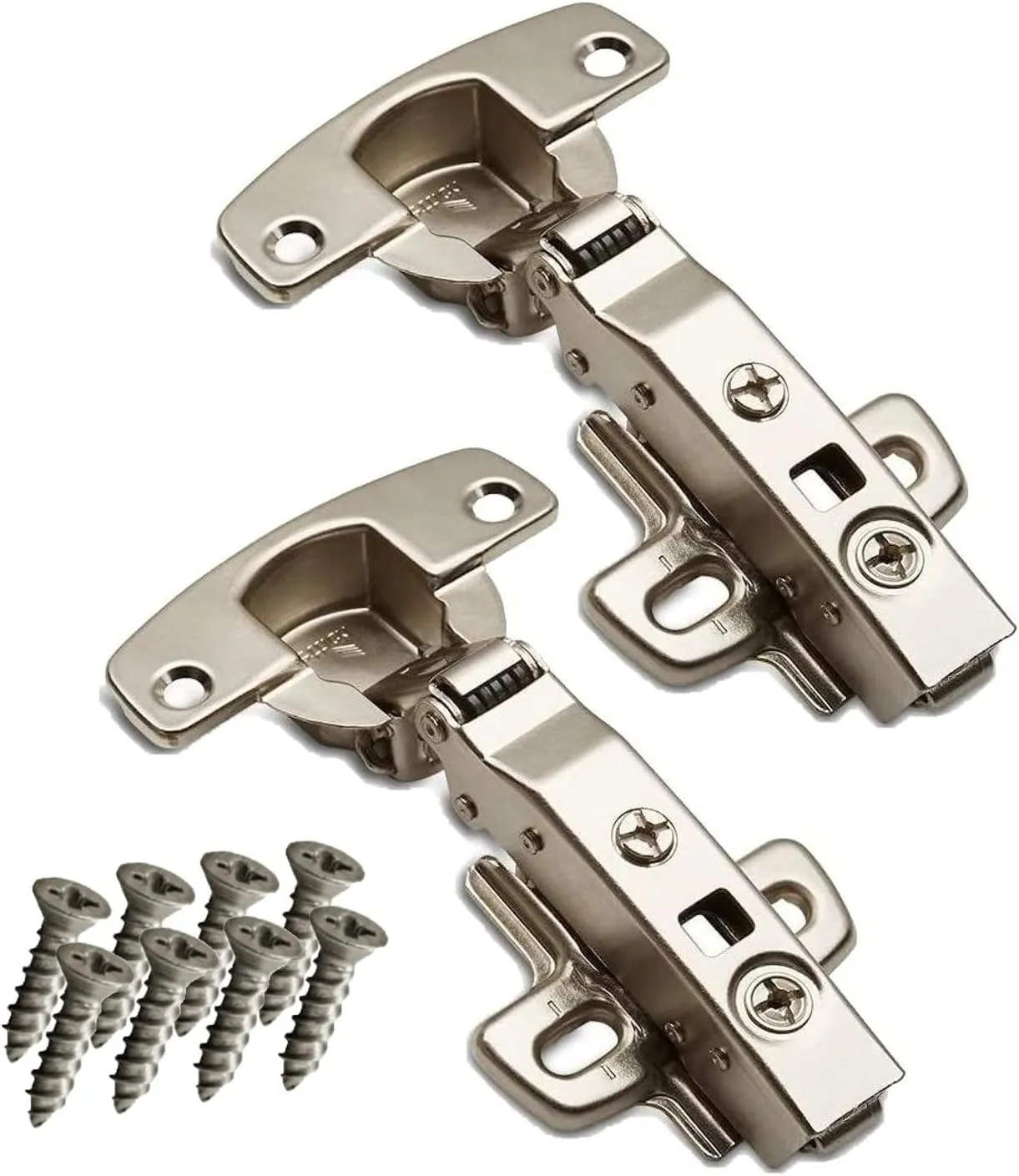

- Hinges: set of 2 (as shown in the first picture)
-Includes mounting screws (size: M4 x 16 mm)
Furniture doors can be easily clipped on and removed by pressing on the back part of the tape. The Hettich hinges with integrated damper ensure silent and slow closing of the furniture door
