Made of tough , non-porous SAE 304 Stainless steel
Best suited for marine, heavy washes for medical applications and other adverse environment
17/64" (6.74mm) grommet and washer
Hole size once fitted 17/64" ( 6.74mm )

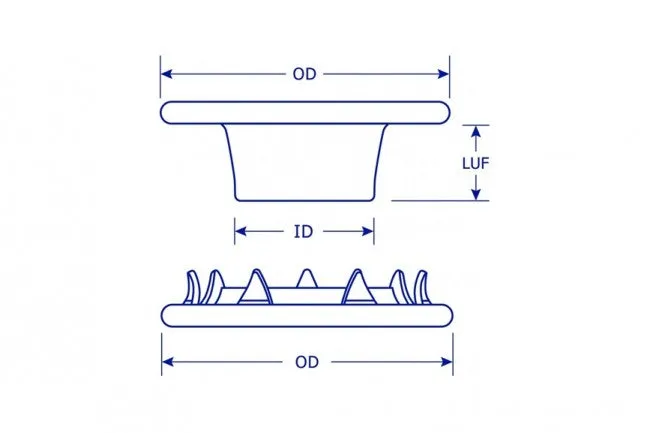

Grommet
Outside diameter 0.665" ( 16.89mm )
LUF 0.157" ( 3.98mm )
Washer
Inside diameter 0.307" ( 7.79mm )
Outside diameter 0.673" ( 17.09mm )
3/8" ( 9.5mm )grommet and washer
Hole size once fitted 3/8" ( 9.5mm )
Grommet
Outside diameter 0.866" ( 22mm )
LUF 0.212" ( 5.38mm )
Washer
Inside diameter 0.421" ( 10.69mm )
Outside diameter 0.866" ( 22mm )
1/2" (12.7mm) grommet and washer
Hole size once fitted 1/2" ( 12.7mm )
Grommet
Outside diameter 1.063" ( 27mm )
LUF 0.260" ( 6.6mm )
Washer
Inside diameter 0.551" ( 14mm )
Outside diameter 1.051" ( 26.7mm )
5/8" (15.88mm) grommet and washer
Hole size once fitted 5/8" ( 15.88mm )
Grommet
Outside diameter 1.240" ( 31.5mm )
LUF 0.319" ( 8.10mm )
Washer
Inside diameter 0.693" ( 17.6mm )
Outside diameter 1.248" ( 31.7mm )
